Carbon fiber is one of the strongest and lightest materials available, making it the material of choice for aerospace, motorsports, robotics, marine, cycling, and countless high-performance applications. While producing carbon fiber parts often requires expensive aluminum or steel tooling for production runs, there is a much faster and more economical option for prototypes and low-volume manufacturing: machinable wax.
Machinable wax has become a favorite material among engineers, product designers, universities, and hobbyists because it machines quickly, produces an excellent surface finish, and can be reused many times. Whether you're creating a one-off prototype or testing several design iterations, machinable wax can dramatically reduce tooling costs while speeding up development.
Why Use Machinable Wax?
Unlike MDF, foam, or wood, machinable wax is specifically engineered for CNC machining. It cuts cleanly without producing fine dust, holds extremely fine detail, and creates smooth surfaces that require very little finishing before use.
Some of its biggest advantages include:
- Excellent machinability with high feed rates
- Minimal tool wear
- Outstanding dimensional stability
- Extremely smooth surface finish directly off the CNC
- Resistant to moisture and humidity
- Reusable and recyclable
- Easy to repair if modifications are needed
- Easy to sand or polish to a very smooth surface finish if desired.
For prototype tooling, these characteristics make machinable wax an ideal mold material.
Male Plug vs. Female Mold
There are two common ways machinable wax is used in carbon fiber manufacturing.
Machining a Male Plug
A male plug is the positive shape of your final part. Carbon fiber fabric is laid over the outside surface of the plug before vacuum bagging or resin infusion.
This method works well for:
- Simple geometries
- Cosmetic exterior surfaces
- One-off prototype parts
- Large components
Because the carbon fiber is formed over the outside of the plug, the finished part will have exterior dimensions slightly larger than the plug due to laminate thickness.

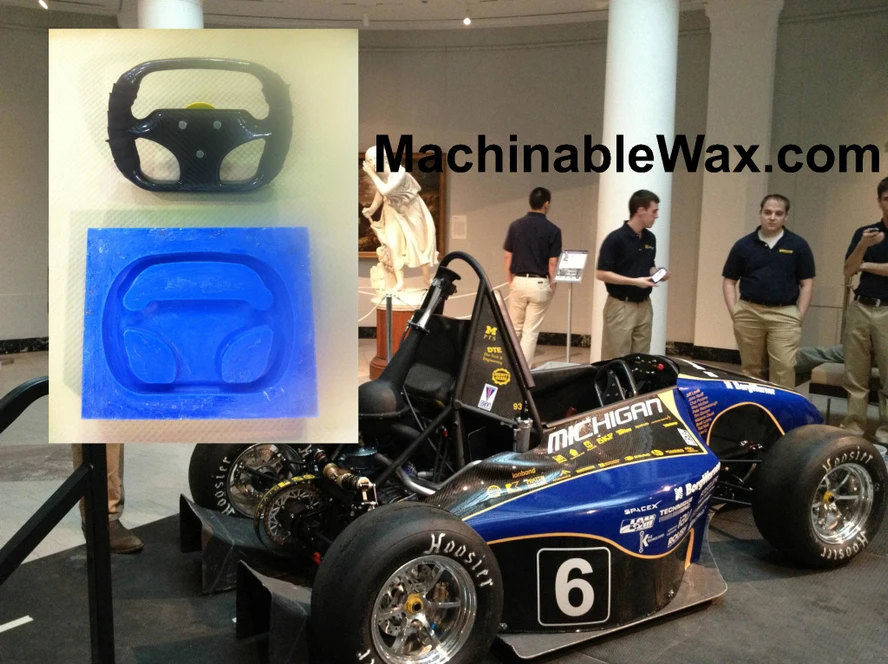

Machining a Female Mold
A female mold contains the cavity of the finished part. Carbon fiber is laid inside the mold, resulting in highly accurate outside dimensions and excellent cosmetic surfaces.
Female molds are preferred when:
- Surface finish is critical
- Parts require dimensional accuracy
- Multiple identical parts will be produced
- Professional appearance is important
Machinable wax excels at producing both styles of tooling.
Designing the Mold
Before machining begins, it's important to consider the manufacturing process.
Good mold design includes:
- Adequate draft angles for part removal
- Generous radii to help carbon fabric conform
- Smooth transitions between surfaces
- Flanges around the perimeter for vacuum bag sealing
- Registration features if producing multi-piece molds
Spending additional time designing the tooling often saves significant labor during layup.
CNC Machining the Wax
One of machinable wax's greatest strengths is how easily it machines.
Most molds can be produced using standard carbide end mills with aggressive feed rates. Since wax generates little cutting force, larger stepovers and deeper cuts are often possible compared to milling aluminum.
For the best surface finish:
- Use sharp carbide tooling with a low flute count.
- Leave a small finishing allowance after roughing.
- Finish with a fine stepover using a ball end mill.
- Avoid excessive spindle speeds that may generate unnecessary heat.
The resulting surface often requires little or no sanding.
Preparing the Mold
Before laying carbon fiber, inspect the machined surface for any machining marks or imperfections.
Minor scratches can usually be removed with fine abrasive pads or polishing compounds.
After cleaning the mold:
- Remove all chips and residue.
- Apply an appropriate mold release agent.
- Buff the release if required by the manufacturer.
- Repeat multiple coats for new molds.
A proper mold release ensures the finished part separates cleanly without damaging either the carbon fiber or the wax tooling.
Carbon Fiber Layup
Once the mold is prepared, the carbon fiber can be laid into (or over) the mold using your preferred process.
Common methods include:
- Wet layup
- Vacuum bagging
- Resin infusion
- Prepreg (within the temperature limitations of the wax)
Carefully work the fabric into corners and radii to eliminate bridging and wrinkles. Multiple layers can then be stacked according to the required laminate schedule.
Curing Considerations
Temperature is one of the most important considerations when using machinable wax tooling.
Before selecting a resin system, verify that its cure schedule remains below the softening temperature of your wax. For our BLUE machinable wax formula, the softening point will be around 200°F.
If higher-temperature curing is required, consider using the wax mold to create a fiberglass or epoxy composite production mold capable of withstanding elevated temperatures.
Removing the Part
After the resin has fully cured, gently separate the carbon fiber part from the mold.
If a quality mold release was used, parts should release cleanly with minimal effort.
Avoid using metal pry tools that could damage the mold surface.
Reusing and Recycling the Wax
One of the biggest advantages of machinable wax is that it rarely becomes waste.
Old molds can be:
- Remachined into new tooling
- Melted and recast into fresh billets
- Recycled into future machining stock
This makes machinable wax one of the most economical tooling materials available for product development and prototyping.
Is Machinable Wax Right for Your Project?
If you're producing a prototype, testing a new design, or manufacturing a limited production run, machinable wax offers an excellent balance of speed, precision, cost, and reusability.
Instead of investing in expensive aluminum tooling before your design is finalized, machinable wax allows rapid iteration with professional-quality results. Once the design is proven, production tooling can be manufactured with confidence—saving both time and money throughout the development process.
